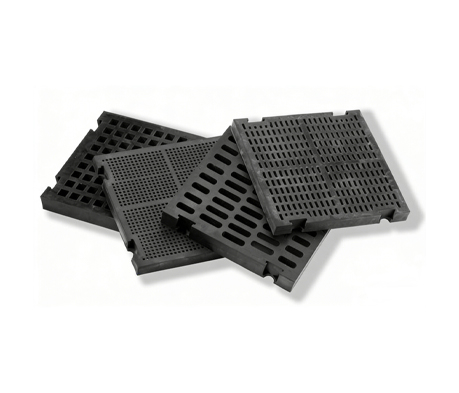

Sieve plate

Specification    Customizable

Mesh Size         3 - 200mm

Thickness     2 - 350mm

Hardness        40 - 85A

We use specially formulated synthetic rubber and natural rubber to manufacture screen panels for screening hard, highly abrasive ores and other materials!

We offer a full range of rubber screen panels. These high-quality rubber screens deliver a long service life in both wet and dry applications, with excellent wear resistance and toughness. The rubber screen panels feature a large open area, while the high elasticity and tapered openings reduce blinding and blocking, significantly improving screening efficiency.

Technical Features

1. Embedded steel frame material prevents screen panel deformation and extends service life;

2. Lightweight screen panel facilitates on-site installation and removal;

3. High elasticity and strong impact resistance, with advantages being more pronounced when screening large-sized materials;

4. Low noise level improves the working environment;

5. Customized hole shapes based on material screening requirements to meet on-site process specifications.

Rubber Screen Panel, a type of rubber sheet. The rubber sheet is embedded with a metal frame, with uniformly distributed apertures of the same specification on the surface. It offers good wear resistance and low noise. As a key component of vibrating screens, it is primarily used for raw coal classification, ore sorting, and other applications, and is widely used in coal preparation and mineral processing industries.

1.High impact absorption provides excellent wear resistance. Under normal conditions, wear-resistant rubber screen panels have a service life 4 to 8 times longer than metal screen panels.

2.Low noise and reduced dust. According to on-site measurements, the same vibrating screen equipped with wear-resistant rubber screen panels can reduce noise by 5 to 20 decibels compared to metal screen panels, while significantly reducing dust emissions, creating a quiet and clean working environment in the workshop.

3.Low specific gravity, easy installation, and convenient handling and transportation. A 1㎡ rubber screen panel with a thickness of 15mm weighs less than 15kg, which not only reduces the overall weight of the equipment but also correspondingly lowers the power consumption of the screen.

4.Excellent anti-clogging and self-cleaning properties due to the structure of the wear-resistant rubber screen panel. The apertures exhibit strong elastic deformation (i.e., a small periodic change in aperture size under external force) and feature an inverted cone shape, making them less prone to clogging.

5.High screening accuracy. The apertures are formed in a single punch using specialized forming tools, ensuring precise dimensions and delivering a screening accuracy unattainable with woven screens.

The thickness of wear-resistant rubber screen panels is available in 7mm, 10mm, 15mm, 20mm, 25mm, and 30mm. Common hole shapes include square, round, and rectangular.

Users can select according to their needs. Screen panels with special specifications or performance characteristics can be customized individually.

Wear-resistant rubber screen panels (screen mats) are manufactured by firmly bonding a special rubber working surface to a steel plate frame. They offer excellent properties such as high elasticity, high wear resistance, impact resistance, tear resistance, and an exceptionally long service life. They can be used as matching components for heavy-duty screening equipment in industries such as mining, mineral processing, metallurgy, coking, building materials, and coal preparation.
